Red Light Therapy Effects

Red lights can be soaked up by a part of your cells called mitochondria, sometimes called the “power generators” of your cells, then makes more energy and spurs healing in skin and muscle tissue.

Infrared lights is invisible to the human eye, it has a powerful penerating ability, so, can be absorbed by the deep body tissues, then generates radiant heat from inside faster, enhances the cells activation, promotes tissue metabolism, improves blood circulation, reduces the excitability of nerve endings. The ability of cellular oxygen uptake and tissue nutrition will enhance, chemical and mechanical stimulation of nerve endings will go down, so, it helps relieve pain associated with joints and muscles, alleviate neuropathy, encourage nerve regeneration and repair.

Product Specifications

Shell Material	Aluminum Alloy
Voltage	100 – 240V
Power Consumption	1092W
Product Size	1717 x 415 x 71 mm(67.6 x 16.3 x 2.79 inches)
Net Weight	71 lbs (32 kg)
LED Count	840 pcs
Lens Beam Angle	30 Degree
Wavelengths	5 Wavebands: 630nm+660nm+810nm+830nm+850nm
EMF	0 μT @ 3 inches
Timer	0 ~ 30 Minutes
Dimmer	0% ~ 100%, with separate controls for Red & NIR
Pulse Frequency	0 ~ 10,000 Hz, with separate controls for Red & NIR
Photon Mode	Red, NIR, Red + NIR
Cooling Fan Quantity	8
Life Span	100,000 Hours
Warranty	3 Years
Customizable (>/=1 unit)	Wavelengths, Pulse frequency, Logo, etc.

Design Features

Clinically proven wavelengths for optimal results

660nm red light and 850nm near infrared light are the best wavelengths for red light therapy. These wavelengths are able to penetrate deep into the skin and stimulate energy production in cells, thereby promoting cell repair and regeneration.

We designed 20% extra beneficial wavelengths of 630nm, 810nm and 830nm and equally distributed to help enhance the effects. The proper portion was recognized by many therapists and doctors.

Brilliant Three Units Modular Design

The panel is divided into three units of 1:2:3 size according to the human body proportions. It also supports customized LED wavelengths and light ratios in these three units.

Panel Size: The size of the panel is 1717 x 415 x 71mm (67.6 x 16.3 x 2.79in) which is able to cover your whole body well. A power switch at the bottom of the back shell of the device, which can turn the power on and off with one button.

Perfect Panel Housing Design

Patent Cooling Technology: We utilize aluminum cooling fins to affix all LEDs, incorporating hydrodynamic heat dissipation technology, ensuring consistent thermal management throughout the device’s operation. All LEDs operate within a moderate temperature range from startup until the end of each day.

Protective Acrylic Panel: Our patented acrylic panel possesses high light transmission properties, as well as exceptional heat resistance and water resistance. It is utilized to shield the device’s front surface, effectively safeguarding all optical lenses and lamp beads against potential damage caused by water, dust, scratches or other external factors.

Highly Efficient Irradiance

The panel boasts an array of 840 LEDs, harnessing the immense power of 630nm and 660nm red wavelengths, along with 810nm, 830nm and 850nm near-infrared wavelengths.

This combination enable to gives it powerful irradiances (light intensities), ensuring exceptionally effective performance. At a distance of just 6 inches, it provides an impressive 156mw/cm2 (measured using a solar meter).

Ultra Low EMF

Panel has ultra low EMF with no detectable levels at 3 inches.

Using Flicker-Free technology ensures the device will not cause harm in other ways

Easy to Use by Intelligent Remote Controller

Four Levels of Height Setting, Wall Hanging Kit Comes with the Package

The video shows the results of the setup:

Gear 4: 170cm
Gear 3: 143cm
Gear 2: 119cm
Gear 1: 105cm

Switch the height unit: Press “S” button, if the digital shows “70-170”, which means the height unit is centimeter (cm). You can switch the unit to an inch by lengthy pressing the “S” button until the digital shows “27.5-66.9”.

Set the height of each level: Adjust the height by pressing “Λ” and “V”, then press the “S” button and one of “1-4” button to save the corresponding height of “1-4” gear. After setting, you can easily select four positions by pressing the “1-4” button as it applies memory function.

Wall hanging kit: The device comes with a wall-mounted kit for easy use in narrow spaces. It can be used in conjunction with a mobile stand to be well suited for various treatment occasions.

The Height is Adjustable from 170cm (27.5″) to 70cm (66.9″)

The versatile stand is designed with a motor-driven feature, the height is adjustable and can be swiveled up to 360 degrees. You can recline on a lounge with an inclined angle, stand with a vertical angle, or lie on your bed with a horizontal angle.

Remote control altitude: Equipped with remote control can control the height of the support, one key silk slide control height.

Remote Control

The three buttons are for up, stop, and down.

Mounting with Light Panel

Packing List

1 x Light Therapy Device
2 x Remote
1 x Power Cord (Follow your country standard)
1 x Wall Hanging Kit
1 x Goggles
1 x Electric Mobile Stand

Use Suggestion

Session：20 – 30 minutes for the same area in one session. It is better to start with a shorter session if you never use light therapy.

Frequency: 1 – 2 times a day for the same area treatment. Keep minimum 6 hours interval for the 2nd treatment for the same area.

Distance: Expose your skin and keep a distance at 6 – 24 inches from the device for best results.

Protect your eyes: Please wear goggles when enjoying the light therapy.

Tips: Drink some water before and during use and avoid heavy makeup or lotions before a session is advisable. Post-treatment, maintaining a healthy lifestyle will enhance results.

NOT USE UNDER THESE CONDITIONS

Children under the age of 13, pregnancy and epilepsy, photo-allergy, and photosensitizing medications like lithium, melatonin, phenothiazine antipsychotics, and certain antibiotics.

People with a history of skin cancer, insensitive to heat, and systemic lupus erythematosus should also avoid this kind of treatment.

Besides, if you are currently taking steroids or cortisone injections, you should not receive light therapy.

Precautions

1. One treatment session for the same area should not exceed 30 minutes.
2. Turn off all power after finishing treatment, pull plugs off when not in use.
3. Do not use the device in the circumstances of hot, humid, dusty or have lampblack in the environment.
4. Keep your device away from sources of liquid, such as drinks, washbasins, bathtubs, shower stalls, and so on.
5. Keep your device in a cool, dry, well-ventilated location without corrosive gas.
6. Prevent impact or violent vibration, move it gently.
7. Avoiding alcohol or corrosive solvent to clean all parts of the device.

Maintenance

Turn off the power of your device first, and then unplug the power cord. Then use a light damp, soft, lint-free cloth to clean exterior. Do not spray liquid directly.

3-Year Warranty

All panels of Infrared Red Light (IRL) purchased new from IRL directly or an authorized reseller are warranted for a period of three years from the date of shipment from the factory. IRL will be responsible for the faults of the products caused by the normal using during the warranty period, repair or replace the corresponding component found to be defective at no charge to the purchaser.

IRL shall not be liable for any faults or damage caused by misuse, accidental or intentional damage, force majeure, or the product has been modified.

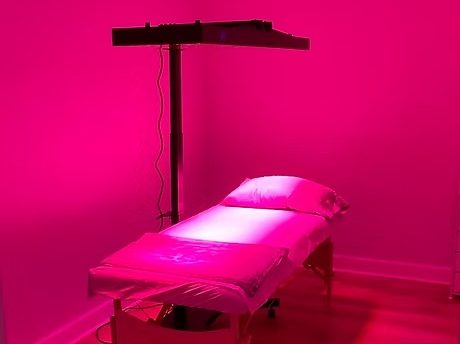

Full Body Red Light Therapy Device
